Fig. 112

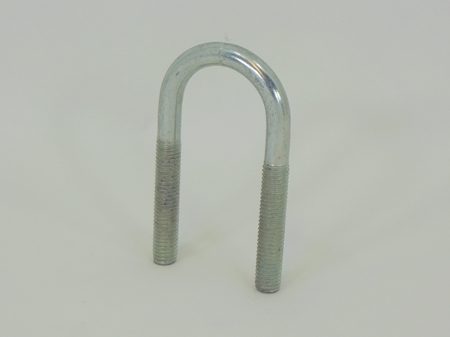

Krambeugel voor zware belasting.

18 1

		Inch	DN	A1	E	L1	L2	L3	L4
	22	1/2"	15	M10	33	56	45	67	45	0
	27	3/4"	20	M10	38	59	45	72	45	0.1
	34	1"	25	M10	45	63	50	80	46	0.1
	42	1 1/4"	32	M10	54	69	55	90	48	0.2
	48	1 1/2"	40	M10	60	71	60	95	47	0.2
	60	2"	50	M12	74	85	65	115	55	0.3
	76	2 1/2"	65	M12	90	92	65	130	54	0.3
	89	3"	80	M12	104	96	70	140	51	0.4
	102	3 1/2"	90	M12	118	104	70	155	53	0
	114	4"	100	M16	134	118	80	175	61	0.8
	140	5"	125	M16	160	130	80	200	60	0.9
	168	6"	150	M16	188	151	85	235	67	1.1
	194	7"	175	M20	218	163	85	260	66	1.8
	219	8"	200	M20	244	181	90	290	71	0
	273	10"	250	M24	302	214	95	350	77	3.6
